Lean Squad: Exploring Automated Software Verification with Near-Zero Human Labour

Uncategorized 13 Minutes

Formal verification is one of the hardest things in software engineering. You need fluency in a proof assistant, deep understanding of invariant discovery, and months – sometimes years – of dedicated effort. This expertise barrier has limited formal verification to a handful of well-funded teams working on a handful of high-value targets. Formal verification is a labour constrained activity – very costly, highly educated labour has been required to perform painstaking work of the kind few have both the skill and the patience to perform.

I’ve been wondering: what if that barrier could be removed? And what role can repository automation play in this?

So over the past few weeks I’ve developed Lean Squad, a GitHub Agentic Workflow to play around with automated formal verification. And I don’t mean just “automatically proving a theorem”. I mean automating everything to do with the application of formal verification to a particular repository, including:

  • Researching the codebase
  • Deciding what formal verification to try to do
  • Deriving a formal implementation model from the actual code (or creating a formal implementation model and documenting its correspondence to the code)
  • Formulating informal and formal specifications
  • Iterating on proofs
  • Critiquing the work
  • Maintaining the definitions and proofs under change
  • Writing reports about the work.

Imagine you have some software and you hire a group of formal verification professionals. You put them in a room, and ask them to work diligently and relentlessly, doing whatever they do. At the extreme the idea is that you – the “user” – might not need to know anything. You might barely know what formal verification is, and you might not know if it’s useful to your codebase. You might not really know what a specification is. You just decide you want some formal verification done, so you hire a team to do it.

Fully automated end-to-end software verification squads for hire. Maybe it’s useful. Maybe it’s not 🤷. The aim of this post is to present this form factor, this packaging, this delivery modality, this concept. It’s not to say “this is how we should do formal verification today” or even that it’s at all useful. But somewhere in the near future this is how formal verification will be delivered. So we may as well start playing around with it today.

What is Lean Squad?

Lean Squad is a GitHub Agentic Workflow that applies Lean 4 formal verification to your codebase progressively and optimistically — without requiring any prior FV expertise. Each run it selects tasks weighted to the current phase of FV progress, from initial research all the way through to completed proofs, correspondence reviews, project reports, and even a LaTeX conference paper. Maybe it finds a bug; maybe it proves something; either way, it makes forward progress.

Lean Squad is the same architecture as Repo Assist, my all-singing, all-dancing cheerful repository automation assist that has helped me skip and jump through software maintenance tasks with the joy of a spring lamb. That is, Lean Squad is a declarative workflow specification that orchestrates an LLM coding agent to do a weighted selection of tasks as a scheduled GitHub Actions job – but instead of repository maintenance, it does formal verification in Lean 4. Autonomously. On a schedule. With near-zero human involvement.

Installing Lean Squad is just two commands (the second will ask you for an LLM API key – it costs tokens!):

# Install the GitHub Agentic Workflows CLI extension
gh extension install github/gh-aw
# Add Lean Squad to the current repository
gh aw add-wizard githubnext/agentics/lean-squad

That’s all there is to it.

Once installed, it runs on a schedule (every 8 hours by default). Each run:

  1. Reads persistent repo-memory to recover target state, phase status, and prior decisions
  2. Draws two tasks from a phase-weighted probability distribution over ten task types (Research, Informal Spec, Formal Spec, Implementation, Proof, Correspondence Review, Critique, CI, Report, Paper)
  3. Installs the Lean toolchain
  4. Executes the tasks – researching, writing Lean files, running `lake build`
  5. Creates a pull request with verified code
  6. Updates the status issue

The weight scheme adapts automatically. When no FV work exists, Research dominates. As specs accumulate, Proof rises. Once proofs are done, reflective tasks (Critique, Correspondence Review) gain weight. Persistent memory ensures each run builds on the last.

The human can, at any stage, comment on an existing issue with /lean-squad COMMENT, or create an issue with a similar body. We call this a “nudge”, an example is here, where I wrote /lean-squad Address these concerns from critique.md, plan out rest of work, write theorems even if unproven, get the project on trajectory to completion....

Five principles underpin the design:

  • Zero human involvement necessary. The agent handles everything.
  • The human oversees, nudges and guides. The human merges PRs and nudges through comments.
  • Optimistic. Start where the code is, find what can be verified.
  • Incremental. A spec with `sorry` today becomes a proof next week.
  • Critique. Steps critiquing the value of the work are built-in.

I’ve now applied it to three repositories. The results have surprised me.

raft-rs: 443 Theorems, Two Human Comments

The first target was raft-rs, a production Rust implementation of the Raft distributed consensus protocol (derived from TiKV’s raft-rs). This is serious infrastructure code — 52 source files covering quorum arithmetic, log management, flow control, membership changes, and configuration validation.

I installed Lean Squad, set it to run every 8 hours, and largely walked away.

Over 34 runs spanning about 3 weeks, I watched as the automated agentic workflow:

  • Surveyed the codebase and identified 22 verification targets
  • Designed a six-layer proof architecture (data structures → quorum arithmetic → protocol operations → cross-module composition → Raft safety → reachability)
  • Wrote all 22 informal specifications
  • Wrote and proved 443 theorems across 23 Lean 4 files
  • Caught one formulation bug through the “sorry” discipline
  • Found no implementation bugs

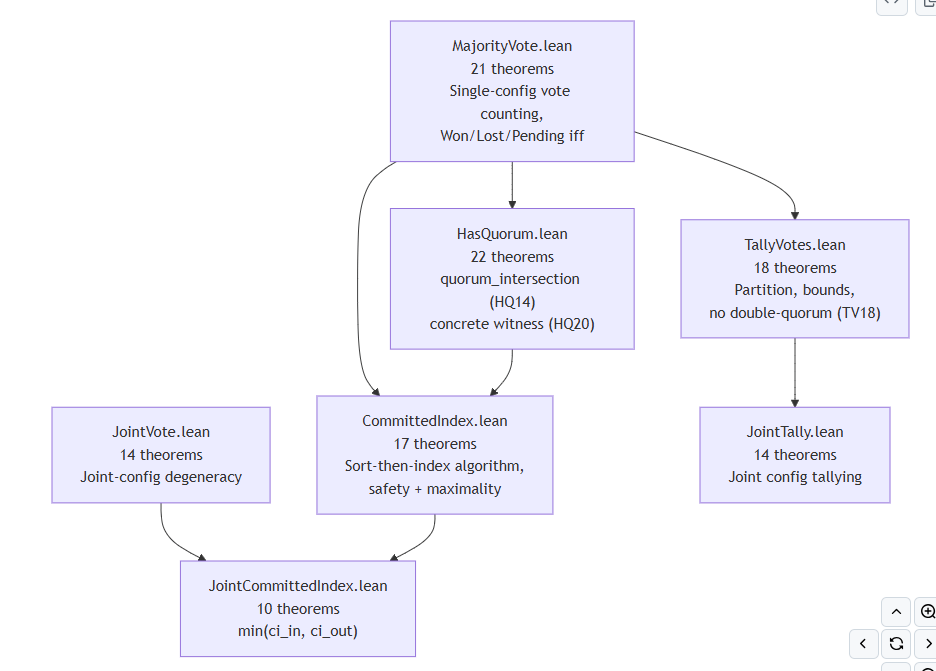

The agent REPORT.md contains some nice Mermaid diagrams of the proof architecture, this from Layer 4:

You can read the results of the agent here:

  • RESEARCH.md – initial codebase survey and target rationale
  • TARGETS.md – prioritised target list with phase status
  • REPORT.md – comprehensive project report with proof architecture and theorem inventory
  • CORRESPONDENCE.md – Lean-to-Rust mapping with all known divergences
  • CRITIQUE.md – “honest” assessment of proof utility
  • Lean proofs – all 23 files, 7,440 lines of Lean

The top-level formal result is raftReachable_safe: for any cluster state reachable via valid Raft transitions from an empty initial state, no two nodes ever apply different log entries at the same committed index. That’s qualified state-machine safety for Raft, machine-checked by Lean 4 with zero “sorry”.

My total intervention: two GitHub nudge comments.

  • Once I nudged it to look at a planning epic after it had proved 18 data-structure-level targets.
  • The other nudged it toward the state-machine-level safety gap after 370 theorems.

I never selected a target, wrote a specification, suggested a proof strategy, or debugged a failing proof. I didn’t need to know Lean. I didn’t need to know formal methods. I just needed to design the workflow and merge PRs.

There is a major caveat to this: the results proved are “bits and pieces” and not all the results are fully composed together. On later analysis, while writing this blog post, I read some of the critique more carefully and realised some major elements were missing. A later analysis added this:

The RaftReachable.step constructor in RaftTrace.lean bundles 5 hypotheses as axioms about each protocol transition. …. Until concrete Raft transitions…, raftReachable_safe (RT2) is conditionally correct only: it proves safety given the hypotheses, but the hypotheses themselves are axioms rather than proved facts.

~60–70% of the components needed for a fully self-contained Raft safety proof exist. The quorum arithmetic, log operations, safety composition, and CCI-threading layers are complete and correct. The missing connecting tissue is the election model — term management, vote-granting conditions, and the leader-completeness composition that would discharge hqc_preserved. Closing the gap would require approximately 3–5 new Lean files and 100–200 additional theorems. This is the hardest single remaining part of Raft verification.

In retrospect the automated “critique” step I implemented was not strong enough, and the process allowed a form of “pseudo-completion” where key assumptions were actually present in the preconditions to the headline theorem. This secondary critique has since been applied and the Lean Squad is at work processing it as I write. It will be interesting to see what it comes up with next. Lesson: repeated critique is needed, and final “results” may rest on assumptions.

The total token cost of this activity was (very approximately) $240 total (this is estimating $7 per run × 34 runs, Claude Opus 4.6 pricing, though in practice the much cheaper Claude Sonnet 4.6 may be been the model used for most of the runs, I haven’t checked in detail).

Cloudflare’s quiche: 518 Theorems, An Ord Violation

My second target was cloudflare/quiche, Cloudflare’s production QUIC and HTTP/3 implementation in Rust. This is the library that powers Cloudflare’s edge network, Android’s DNS resolver, and curl’s HTTP/3 support. It’s a very different codebase from raft-rs – byte-level framing, congestion control algorithms, stream reassembly, connection ID management.

Same workflow. Same install process. Same hands-off approach. The results are at https://github.com/dsyme/quiche/tree/master/formal-verification.

After 85 runs, the agent has proved 518 theorems across 24 Lean 4 files with only 3 `sorry` remaining (two related to 8-byte varint round-trips, one for a full packet-header buffer round-trip). The self-assessment of the agent claims the proofs cover many things:

  • Byte framing: QUIC varint codec round-trips, big-endian integer decode, cursor operations, cross-module write-then-read round-trips for all integer widths
  • Protocol algorithms: RFC 9000 §A.3 packet-number decoding correctness (decode_pktnum_correct), stream-ID classification laws, ACK deduplication via sorted-disjoint range-set invariants
  • Congestion control: NewReno single-halving per RTT, CUBIC window reduction, PRR rate bounds
  • Stream I/O: full 5-clause stream-reassembly invariant (insertAny_inv – the agent self-assessed this to be the hardest proof in the suite), flow-control safety (emitN_le_maxData), retransmit offset bounds

The only bug found was an “Ord” antisymmetry violation in StreamPriorityKey::cmp. For two incremental streams at the same urgency level, both a.cmp(b) = Greater and b.cmp(a) = Greater hold simultaneously. This violates the Rust Ord contract. It may be intentional (and the intrusive red-black tree may tolerate it), but it’s the sort of thing worth digging into.

Full artefacts:

This verification was only of marginal interest to me, but I’ve left it running and if others would be like to help me nudge it I’d be happy to collaborate.

PX4 Autopilot: 259 Theorems, Two Bugs

My third target has been PX4-Autopilot, the open-source autopilot stack for drones and unmanned vehicles. This is safety-critical C++ code – math libraries, signal filters, ring buffers, state machines, CRC algorithms. The kind of code where bugs can crash a drone.

After 54 runs, the agent has proved 259 theorems across 20 Lean 4 files. And here, unlike raft-rs and quiche, it found what might be considered real bugs:

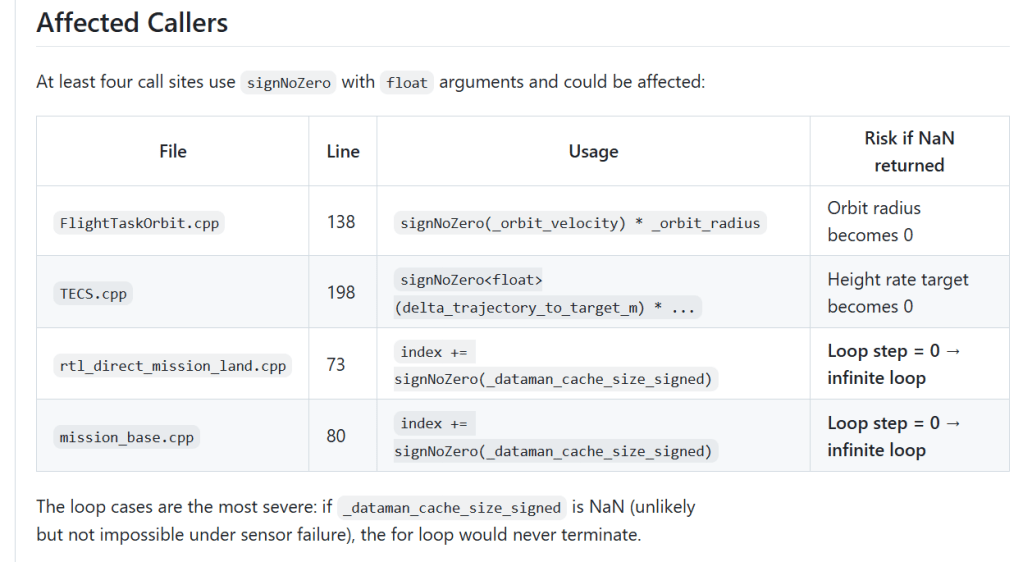

  • Bug 1 — signNoZero<float>: NaN returns 0. The function is supposed to always return ±1 (never 0). But signNoZero(NaN) returns 0, because IEEE 754 comparisons with NaN are all false. Callers that use the result as a divisor can divide by zero when the input is NaN.
  • Bug 2 — negate<int16_t>: involution error. negate(negate(-32767)) returns -32768, not -32767. The C++ unnecessarily special-cases INT16_MAX → INT16_MIN; only INT16_MIN → INT16_MAX is needed (since -INT16_MIN overflows). The extra case breaks involution.

Both bugs were found autonomously by the agent through formal reasoning. Both are the kind of subtle edge case that testing rarely catches. The first is the most interesting, and the agent did an analysis of callers as to its possible impact:

To me “Orbit radius becomes zero” sounds a bit like “Mars Orbiter crashes”. At least, it seems worth looking into.

Beyond bugs, the agent self-assessed that the proofs cover some useful safety properties of the underlying math routines as follows (note, this is agent written claims, but gives a feel for what the AI thinks its proving and why it relates to drone software):

  • slewUpdate_no_overshoot: the actuator slew-rate limiter never overshoots the target
  • rbPush_count_le_size: ring-buffer element count never exceeds capacity (eliminates a class of buffer overruns)
  • alphaIterate_formula: closed-form IIR filter convergence `state_n = target + (state₀ – target)·(1-α)ⁿ`, proved by strong induction with no Mathlib
  • superexpo_denom_pos: the denominator in the super-expo RC stick curve is always strictly positive – division by zero cannot occur
  • update_tf_delay_lb / update_ft_delay_lb: if a hysteresis transition committed, the dwell time was met

Full artefacts:

Again I’ve left this application of formal verification progressing, and if anyone is interested in helping me nudge it I’d enjoy the collaboration.

What’s This is and Isn’t

I want to be honest about what this is and isn’t.

The proofs are real. Every theorem is machine-checked by Lean’s kernel. The sorry counts are exact. lake build passes in CI on every PR.

The definitions are AI written. Every definition and every statement of every theorem is AI written. There is no guarantee that these are “good” definitions.

The implementation models are based on the code. The AI must come up with Lean definitions for the implementation. It can do this either by writing new Lean that “corresponds” to the implementation code, or using an automated tool like Aeneas to translate Rust code to Lean. If the first is chosen (as in all three examples above), it is possible the AI will “make up some garbage implementation that’s easy to prove something about”. But at some level, the process originates in the code and and is rooted in it.

The implementation models are still abstractions. The Lean code doesn’t model every aspect of the Rust or C++ implementations. In PX4, IEEE 754 NaN/rounding semantics are not modelled except in the case where a bug was detected by informal analysis. In theory every divergence between implementation and abstraction is documented in CORRESPONDENCE.md, but this may of course not be the case.

The theorems may have assumptions. In raft-rs, concrete message types and leader election are abstracted into the “RaftReachable” step hypotheses. This points to a need for further, stronger critique.

Not everything is modelled. In quiche, concurrency, crypto, and network I/O are not modelled. Likewise in PX4 most the implementation of the drone autopilot software is not analyzed at all.

Most theorems are glorified testing. The majority of theorems proven are very directly obvious from the code.

Training data overlap exists. Claude Opus 4.6 was almost certainly trained on Raft verification papers, QUIC RFCs, PX4 source code, and Lean 4 proof artefacts. How much this influenced the agent’s choices is hard to measure. But the proofs are machine-checked regardless of how the agent arrived at them – training data cannot produce a false positive in Lean.

All surrounding analysis is written by AI. The Reports, Correspondence and Research are all written by AI. It’s not that I “trust” the AI. I don’t, at some level, trust any of this besides the Lean proofs. This post is about the overall form factor, and how we might begin to fully automate the end-to-end, including enough critique steps to begin to truly trust.

The cost is real but falling. Approx $7 per long run at Claude Opus 4.6 pricing is not free. But compare it to the alternative: a proof engineer who knows Lean, understands distributed systems or flight control or network protocols, and is available for months. That person costs orders of magnitude more, and there aren’t many of them.

New Era, New Work

I’ve spent decades thinking about programming languages and type systems, and my PhD was on formal verification. However I am not a formal verification guy, and in truth I have not, in recent years, been “a believer” – I’m what’s known as “a refugee from formal verification”. That is, like many others I came, during my PhD and my time at industrial research labs, to believe that the value of formal verification has been wildly over-estimated by generations of proponents, vis.a.vis the cost of actually doing it in industry. This is a harsh but realistic perspective: unless you’re part of the cult, it’s pretty clear that the labour cost of doing formal verification is astronomically high, and the rate of bug finding is relatively low. And yet, the depth of insight is genuine – the number and quality of publications you can generate through publishing about the underlying techniques is high, and the insights deeply profound.

So I have always said this: formal verification is a wonderful area of research, and it deserves long term funding. It should and is applied to some super-critical codebases. But for the vast majority of software (measured by developer time), it is too expensive. This means that “belief” in FV can be both well-founded (because of research insights and practical utility on super-critical codebases) and delusional (falsely claiming broad practical utility). .

Will formal methods be more widely adopted if the costs are lowered and “whole task” automation achieved? Will formal verification be useful, even if its cost reduces to near-zero? Will hybrid forms of AI-powered formal verification emerge that acutally seriously contribute to to much higher level system properties of “safety” and “reliability” that actual delivered software systems need? These questions are unanswered by this post – and in many ways I remain skeptical. The proof is still in the pudding, but some bits of the pudding are certainly now a whole lot easier to make.

One thing I’m sure of is that we’re seeing the emergence of new high-skilled work that simply wasn’t being done before. The idea of AI leading to job losses is worrying a lot of people. But there is a flipside to increasing productivity: work that wasn’t economically tractable before may now become tractable, leading to new work, new jobs. This applies to all of supervised automated performance engineering, supervised automated repository maintenance and, here, supervised automated software verification. The process of applying formal verification appears more tractable than ever before. But it clearly requires skill, thought, diligence, observation, critique, oversight. A new job of the future might be to apply automated formal verification to 10s or 100s of repositories simultaneously.

Is this the end of human proof engineering? No, not at all, because any guidance given by talented formal engineers will massively benefit the whole process, and real questions remain about how to shape and guide the entire process. But the assumptions have changed. Getting started with a first-pass on formal verification of real software has never been easier.

Resources
